Basic Information

Rated temperature: -40+125℃
Rated voltage: 600/900V
According to: QC/T1037-2016
The conductor shall be single or twisted 1.5-50mm2 Tin plated or bare copper wire
The insulation is made of irradiated cross-linked polyolefin insulation material
Environmental requirements: Compliant with RoHS standards
The product is widely used in situations where flexibility is required for fixed wiring

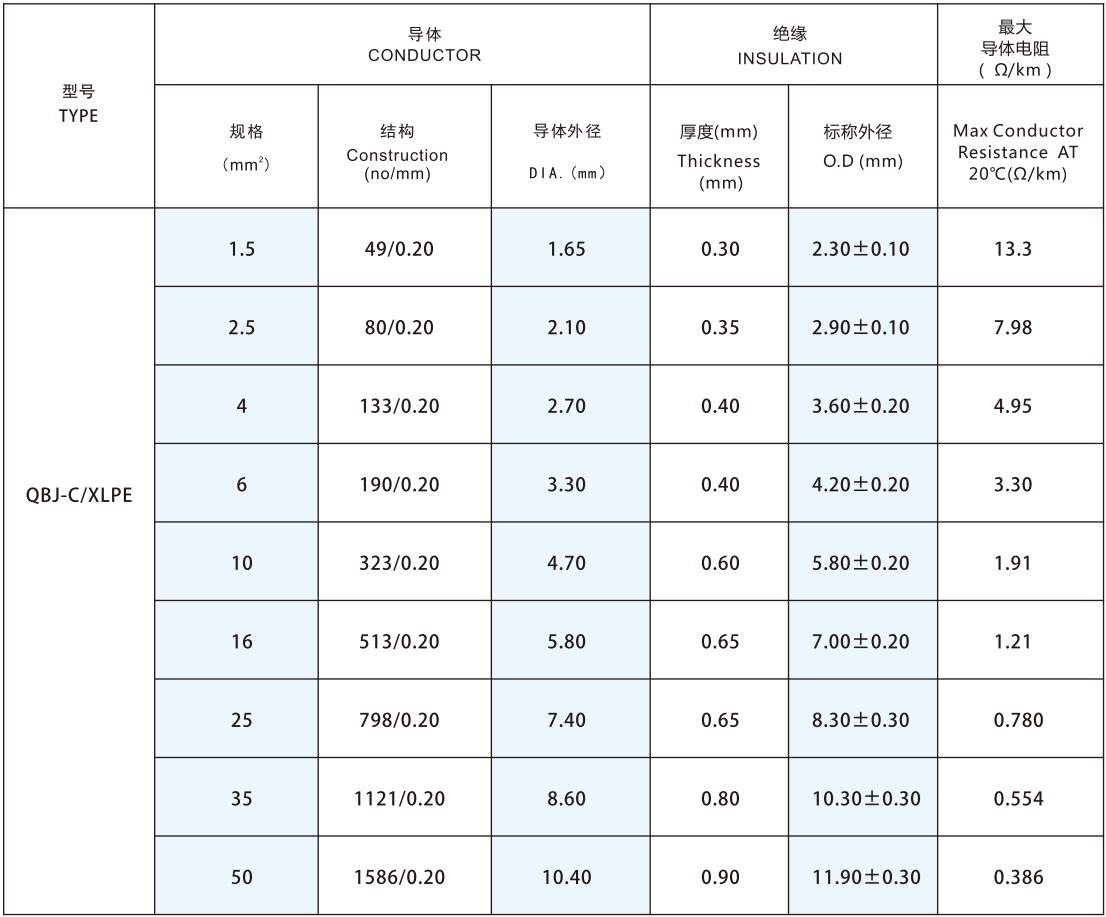

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
